Air Column Bag Film Pe / Pa / Pe For Packaging Fragile Items Inflatable Packaging Bags
| Place of Origin | China |
|---|---|
| Brand Name | Hawking |
| Certification | ISO 9001 |
| Model Number | HK-ABF0010 |
| Minimum Order Quantity | 1 Ton |
| Packaging Details | 18 Per Pallet |
| Delivery Time | 4 Weeks |
| Payment Terms | T/T, L/C |
| Supply Ability | 25 Tons Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Price | Negotiable | Material | Nylon LLDPE |
|---|---|---|---|
| Length | 301 M | Width | 601 Mm |
| Thickness | 76 Microns | Application | For Packaging |
| Certificate | SGS | Specification | 7 Layer, 9Layer And 11 Layer Co-extruded |
Product Description

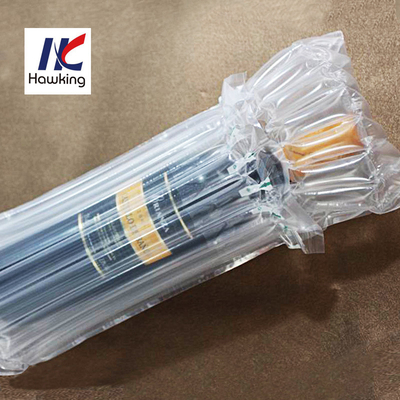

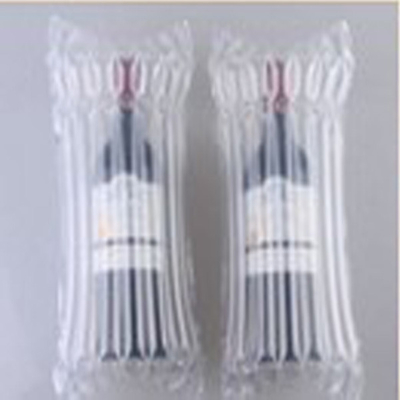

Air Column Bag Film Pe / Pa / Pe For Packaging Fragile Items Inflatable Packaging Bags
Features:
1. Security,barrier,non-leakage,moisture proof, strong sealing.
2. Material,size,printing can according to customers' requirement,we can give some ideas for your reference.
3. Strong sealing strength; bonding strength and excellent compression strength.
Data Sheet:
| Unit | HKCE9860 | HKCE9880 | HKCE98100 | HKCE98125 | ||
| Thickness | um | 60 | 80 | 100 | 125 | |
| Tensile | MD | Mpa | ≥ 34 | ≥ 36 | ≥ 38 | ≥ 43 |
| Strength | TD | Mpa | ≥ 32 | ≥ 35 | ≥ 37 | ≥ 41 |
| Elongation | MD | % | ≥ 420 | ≥ 460 | ≥ 460 | ≥ 480 |
| TD | % | ≥ 435 | ≥ 470 | ≥ 470 | ≥ 530 | |
| Transparence | % | ≥ 92 | ≥ 92 | ≥ 92 | ≥ 90 | |
| Haze | % | ≤ 14 | ≤ 14 | ≤ 15 | ≤ 18 | |
| Coefficient of Friction | 0.1~0.25 | |||||
| WTR | g/ m2.24h. atm | ≤ 8 | ≤ 6 | ≤ 6 | ≤ 5 | |
| (38° C, 90%RH) | ||||||
| OTR | cc/ m2.24h. atm | ≤ 5 | ≤ 5 | ≤ 3 | ≤ 1 | |
| (23° C0%RH) | ||||||
| Heat Seat Strength | N/15mm | ≥ 27 | ≥ 29 | ≥ 33 | ≥ 38 |
Technique Data
1. Test Condition: 20º C, 65%RH (Except as otherwise provided by test methods.
2. EVOH=15u
Attention: Above data is measured value, not specified value.
Product Storage Conditions: The product is made of plastic raw materials, easily burning, please store it in 5º C~35º C dry and well-ventilated environment, and keep it away from heat source at least 1m away.
Features:
1. Good tensile properties;
2. Withstanding high temperature up to 100 degree centigrade (boiling water)and freezing temperature as low as -45degree centigrade;
3. Good heat-sealing properties and initial adhesion;
4. With excellent film thickness deviation;
5. High planeness of bags made by it.
Product Performance:
1. Highly puncture-resistant and flexible;
2. Highly transparent and excellent planeness of bags made by it;
3. Excellent deep drawing performance, used as lidding & thermoforming films;
4. Thickness range: 30-200um.
Storage:
Please store it in clean, well-ventilated and dry environments at a temperature between 5ºC and 35ºC; Keep it away from heat, corrosive chemicals or any other harmful substances.
If you are interested in it, please feel free to contact me, tell me your needs, I will send you more product details, and I can quote you a good price.
MOQ: 1-2Ton. Please tell me the purchase details, I can help you calculate the specific quantity of MOQ PCS/Roll.
