Coextruded Plastic Food Packaging Film Roll Polyester Base Film

Place of Origin China
Brand Name Hawking
Certification ISO 9001
Model Number HK-BTF0011
Minimum Order Quantity 1 Ton
Packaging Details 18 Per Pallet
Delivery Time 4 Weeks
Payment Terms T/T, L/C
Supply Ability 25 Tons Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Price Negotiable Length 306 M
Width 603 Mm Thickness 120 Um
Application For Food Color Primary Colour
Texture Plastic Certificate SGS
Type Polyester Base Film Craft Coextruded
Material Plastic
Leave a Message
Product Description

Coextruded Plastic Food Packaging Film Roll Polyester Base Film





Type/Structure:



*7 layers dis-symmetric PA/PE film----PA/TIE/PE/TIE/PA/TIE/PE



*7 layers symmetric PE/PA/PE film----PE/PE/PE/TIE/PA/PIE/PE



*7 layers symmetric PE/EVOH/PE film----PE/PE/TIE/EVOH/TIE/TIE/PE



*7 layers symmetric PA/EVOH/PE film----PA/TIE/PA/EVOH/TIE/PE/PE



*9 layers dis-symmetric PA/PE film---PA/TIE/PE/TIE/PA/PA/EVOH/TIE/PE



*9 layers symmetric PA/EVOH film---PE/PE/PE/TIE/PA/EVOH/PA/TIE/PE





Product Performance:



Highly puncture-resistant and flexible;



Highly transparent and high planeness of bags made by it;



Can be boiled and frozen, made into sacks with tube membrane directly;



Thickness range: 30-200um.




Product Description:



PE/PA/PE coextruded film is a symmetrical five-layer film, with excellent strength and puncture-resistance. Without biaxial stretch, coextruded PA film is superior in strength and puncture-resistance, compared with film with biaxial stretch. PE/PA/PE is more cost-effective than asymmetric membrane, but not as flat in bag making. Blown PE/PA/PE tube membrane can be made into sacks directly with least cost.





Product Features:



1, performance: CO extruded film, to achieve high barrier effect of oxygen, water, carbon dioxide, odor;



2, powerful: oil resistant, moisture resistant, resistant to 100 ° C high temperature cooking, low temperature freezing, quality preservation, smell. Can be used for vacuum packaging, aseptic packaging, inflatable packaging;



3, flexible structural design: different structural design can be used to meet the quality requirements of different products;



4, high strength: high tensile strength, good flexibility, good sealing;



5, small capacity: CO extruded film can be used for vacuum shrink packaging, volume and capacity ratio close to 100%, which is unmatched by glass, cans, paper packaging;





Our advantage:



1. Equipment:

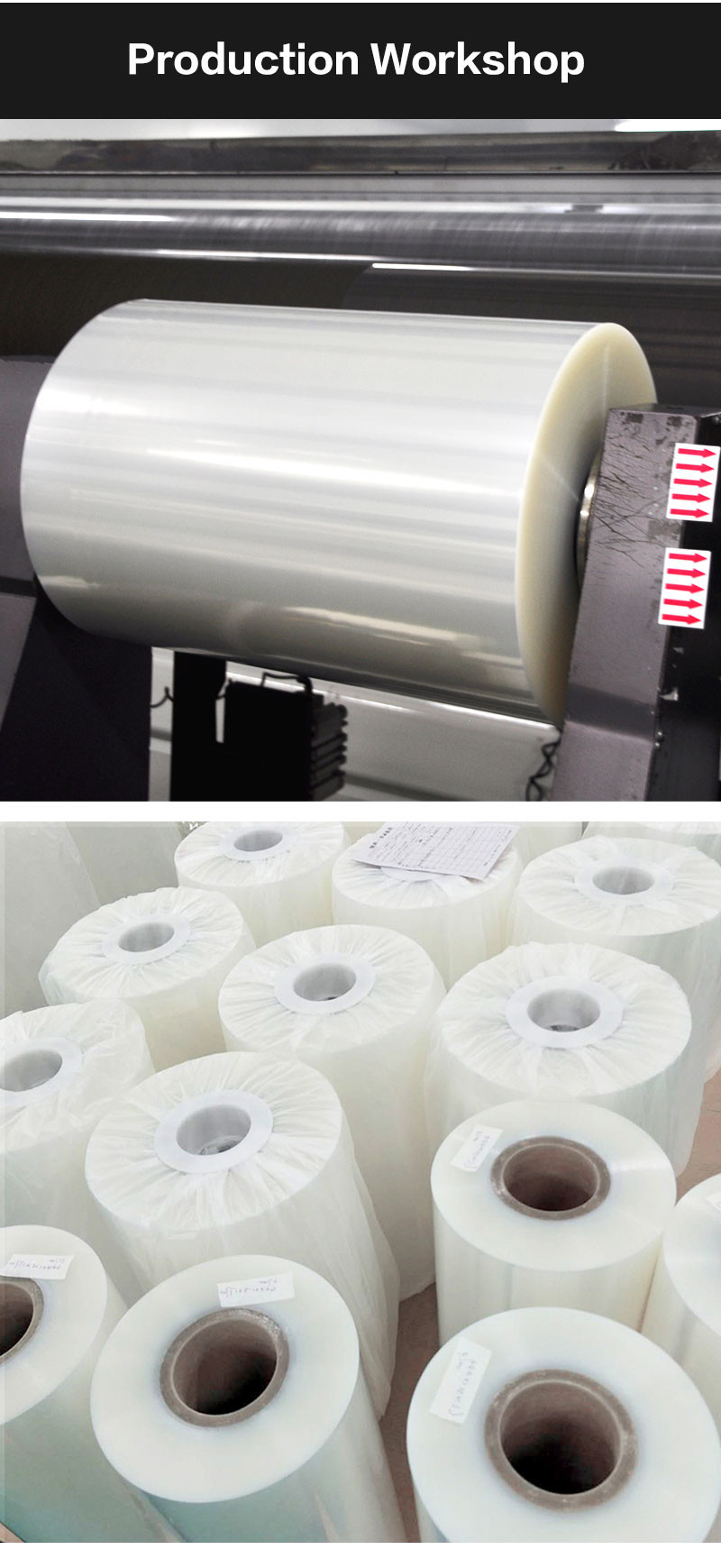

We have the most advanced Germany W&H eleven-layer co-ectruded cast film production line.



2.Capacity Advantage:
Good equipment,extensive production experience,reasonable workshop planning,strong technique.



3. Materials:
All cast films are made of high-quality America and Japan import food grade raw materials.



4.Customer Maintenance:
One-to-one service,reply within 24 hours,communicate and visit exchange.



5. After Service:
We can prepare all documents you need, and solve all problems related to the current order.





Data Sheet:



Coex Casting Film
  Unit PA/PE PA/PP PA/EVOH/PE PA/EVOH/PP
Thickness um 80 90 175 90
Tensile MD/TD Mpa > 25 >25 > 25 ≥ 25
Strength
Elongation MD/TD % > 400 > 400 > 450 ≥ 380
Transparence % ≥ 93 ≥ 93 ≥ 92 ≥ 92
Haze % < 4 < 6 < 10 ≤ 6
Coefficient Of Friction IN/IN 0 .35 0.5 0.35 0.5
WTR g/sq.m/day < 8 < 8 < 3 ≤ 10
(38° C, 100%RH)
OTR cc/sq.m/day < 40 < 40 < 1 ≤ 5
(23 ° C 100%RH)
Sealing Strength N/15mm > 25 > 30 > 50 ≥ 25



--Multilayer film which are producedby combining different polymer layers , offer special attributes as barrier properties against oxygen,water vapour and aromas.
--Easy processing for automatic thermoforming machines.
--Absolutely no inherent curling of web.
--High transparency and high gloss.





Q&A:



Q1: Are you factory ?
A1: Yes,we have been in packaging industry for over 10 years from 2009.



Q2: What is yours main product?
A2: We are mainly produce 7/9/11 multi-layer co-extrusion cast barrier film and plastic packaging bags, Our material is PA,PE,PP,EVOH etc.



Q3: What's the minium quantity(MOQ)?
A3: 2 tons or 20000 pieces.



Q4: How long is shipping time?
A4: 15-20 Days after received payment





If you are interested in it, please feel free to contact me, tell me your needs, I will send you more product details, and I can quote you a good price.

MOQ: 1-2Ton. Please tell me the purchase details, I can help you calculate the specific quantity of MOQ PCS/Roll.

Contact Person: En

E-mail: forla_li@hbhuakun.com

Wechat/Whatsapp/Tel: +86 13450871796
