Transparent Thermoforming Making Bag Film Roll For Food Packaging

Place of Origin China
Brand Name Hawking
Certification ISO 9001
Model Number HK-THF0020
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details 18 Per Pallet
Delivery Time 4 Weeks
Payment Terms T/T, L/C
Supply Ability 25 Tons Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length 300 M Width 600 Mm
Grade Food Grade Application Used In Various Packaging
Color Transparent Price Negotiable
Type Various Types Usage For Food Vacuum Packaging
Leave a Message
Product Description

Transparent Thermoforming Making Bag Film Roll For Food Packaging





Product Information:



Application Sausages,Cereal,Fish,Seafood, Meat, Poultry and medical packaging
Product Line W&H 11 Layer Co-extruded Casting Product Line
All materails and equipments are imported
Material PA /EVOH/PE
Width ≤2700mm
Thickness 20-200micron
Temperature Suitable for Deep Freezing Down to -18°C
Suitable for high temperature cooking up to 100 ° C
Roll Dia. 3"--6"
OEM Available
Color Transparent & Bule & Customized
Print YES
Sample Samples in stock,but couerier fees is paid by client
Payment T/T with 30% deposit and balance paid before shipment
Certificates SGS, ISO9001, ISO14001, QS
Business Type Manufacturer,Exportor more than 13 years experience
Delivery day 20-35 days after finished the prepayment
Payment T/T with 30% deposit and balance paid before shipment
Use Release coating/ adhesive coating/anti-static coating/ printing/metallizing/ metal coating/ packaging
MOQ 1 Ton
Delivery Time about 3 weeks
Loading Port shanghai
Contact En.Lu (Email:Forla_li@hbhuakun.com)





Data Sheet:



    Unit HKCE9860 HKCE9880 HKCE98100 HKCE98125
Thickness   um 60 80 100 125
Tensile MD Mpa ≥ 34 ≥ 36 ≥ 38 ≥ 43
Strength TD Mpa ≥ 32 ≥ 35 ≥ 37 ≥ 41
Elongation MD % ≥ 420 ≥ 460 ≥ 460 ≥ 480
  TD % ≥ 435 ≥ 470 ≥ 470 ≥ 530
Transparence   % ≥ 92 ≥ 92 ≥ 92 ≥ 90
Haze   % ≤ 14 ≤ 14 ≤ 15 ≤ 18
Coefficient of Friction     0.1~0.25
WTR   g/ m2.24h. atm ≤ 8 ≤ 6 ≤ 6 ≤ 5
(38° C, 90%RH)
OTR   cc/ m2.24h. atm ≤ 5 ≤ 5 ≤ 3 ≤ 1
(23° C0%RH)
Heat Seat Strength   N/15mm ≥ 27 ≥ 29 ≥ 33 ≥ 38





Our advantage:



1. Equipment:
We have the most advanced Germany W&H eleven-layer co-ectruded cast film production line.


2. Capacity Advantage:
Good equipment,extensive production experience,reasonable workshop planning,strong technique.


3. Materials:
All cast films are made of high-quality America and Japan import food grade raw materials.


4. Customer Maintenance:
One-to-one service,reply within 24 hours,communicate and visit exchange.


5. After Service:
We can prepare all documents you need, and solve all problems related to the current order.





Storage:



Please store it in clean, well-ventilated and dry environments at a temperature between 5ºC and 35ºC; Keep it away from heat, corrosive chemicals or any other harmful substances.





Product Performance:



1. Highly puncture-resistant and flexible;



2. Highly transparent and excellent planeness of bags made by it;



3. Can be boiled and frozen;



4. Excellent deep drawing performance, used as lidding & thermoforming films;



5. Thickness range: 30-200um.





Features:



1. Highly puncture-resistant, flexible and soft;



2. Good tensile properties;



3. Withstanding high temperature up to 100 degree centigrade (boiling water)and freezing temperature as low as -45degree centigrade;



4. High-barrier;



5. Good heat-sealing properties and initial adhesion;



6. With good tensile strength and heat-sealing strength;



7. With excellent film thickness deviation;



8. High planeness of bags made by it.





Hawking is a first-class developer of new materials and a professional supplier of packaging materials.

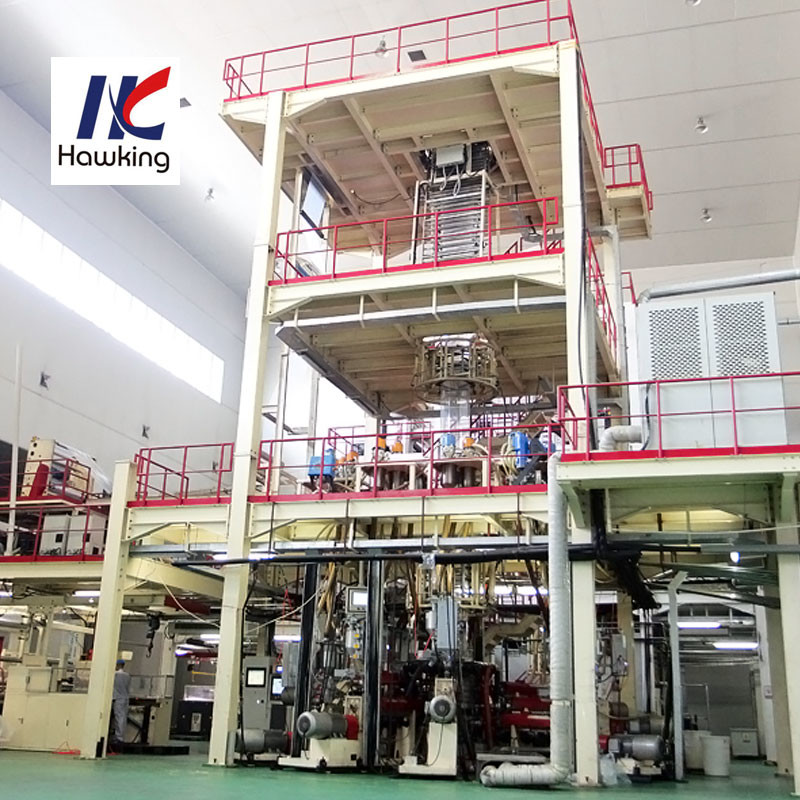

The annual output of the company can reach 10,000 tons, and the thickness of the film can be 20um~300um. The company has introduced advanced equipment from Germany, W&H 11-layer co-extruded casting production line, 7-layer co-extrusion film blowing production line and 9-layer blowing film line. The co-extrusion process will co-extrude plastic particles with different characteristics through the equipment. Production of high barrier film, thermoforming film, Lidding film, vacuum packaging film/bag, multi-layer co-extrusion cushion packaging film and other functional films, the film has puncture resistance, flexibility, high barrier, high transparency, high temperature cooking, refrigeration and other superior performance, can meet the functional packaging needs in various fields. The company has a well-equipped laboratory, equipped with oxygen permeability, layer thickness, tension, friction coefficient, infrared microscope inspection instruments, to ensure that we can produce high-quality film, the implementation of brand strategy, strict process control. Product application: meat products, leisure food, cream products, medicine, electronic products, etc., to provide customers with better packaging materials.





Material: High-quality resin, strong toughness, not easy to damage.


Feature: No bubble, the thermoforming effect is excellent.


Notice: A variety of models, according to the needs of choice. Tear off the white protective paper before use.





Usage: Highly versatile,suitable for multiple applications,such as frozen food, organic food, soup, pre-cooked meals packaging, etc.

Samples can be provided for testing, but the MOQ for formal orders is 1-2 tons.

If you are interested in it, please feel free to contact me, tell me your needs, I will send you more product details, and I can quote you a good price. My contact details are below, and I would be gald to hear from you.


Contact Person:En

E-mail: forla_li@hbhuakun.com

Wechat/Whatsapp/Tel:+86 13450871796
