Flexible Barrier Custom Thermoforming Packaging Films Fast Shipping
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | PA | Length | 300 M |
---|---|---|---|
Product | Flexible Barrier | Grade | Food Grade |
Application | Used In Various Packaging | Color | Transparent |
Type | Barrier Pouched / Bag | Usage | Of Various Types Packaging |
High Light | Custom Thermoforming Packaging Films,Flexible Barrier Thermoforming Packaging Films,High Barrier Thermoforming Film |
Flexible Barrier Custom Thermoforming Packaging Films Fast Shipping
Hawking is a first-class developer of new materials and a professional supplier of packaging materials.
The annual output of the company can reach 10,000 tons, and the thickness of the film can be 20um~300um. The company has introduced advanced equipment from Germany, W&H 11-layer co-extruded casting production line, 7-layer co-extrusion film blowing production line and 9-layer blowing film line. The co-extrusion process will co-extrude plastic particles with different characteristics through the equipment. Production of high barrier film, thermoforming film, Lidding film, vacuum packaging film/bag, multi-layer co-extrusion cushion packaging film and other functional films, the film has puncture resistance, flexibility, high barrier, high transparency, high temperature cooking, refrigeration and other superior performance, can meet the functional packaging needs in various fields. The company has a well-equipped laboratory, equipped with oxygen permeability, layer thickness, tension, friction coefficient, infrared microscope inspection instruments, to ensure that we can produce high-quality film, the implementation of brand strategy, strict process control. Product application: meat products, leisure food, cream products, medicine, electronic products, etc., to provide customers with better packaging materials.

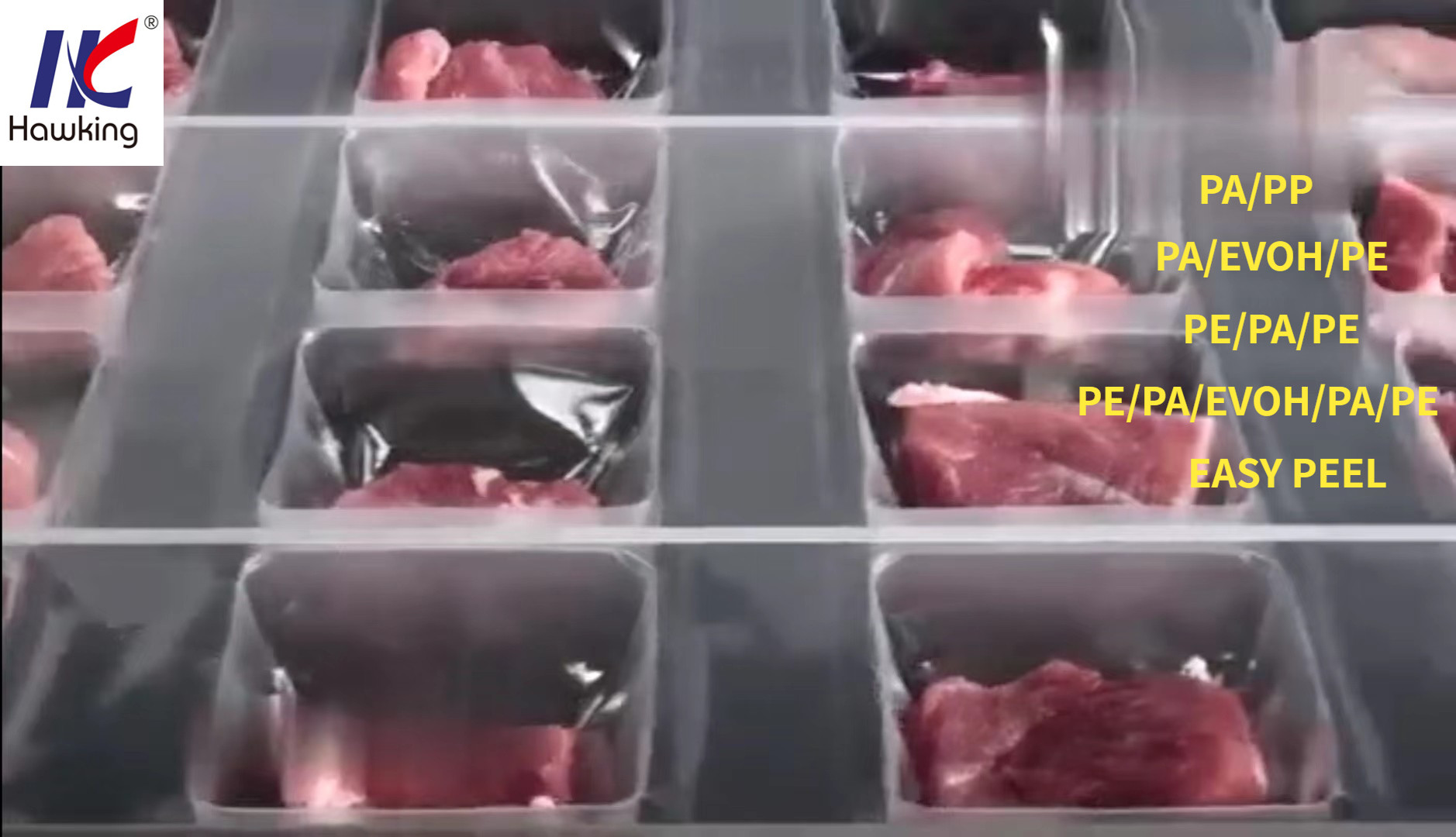

Thermoforming Film
Also Called Forming Film And Non-Forming Film.Used On High Speed Ffs Thermoforming Film Machine,After Forming Bottom Web To Make A Chamber For Food,Then Vacuum And Seal Top Web; Normally Same Materials For Top Web And Bottom Web,To Achieve Same Barrier Property; Suitable For Both 85℃ Pasteurization And 121℃High Temperature Stream Steralization. Excellent Sealing Strength Through Contamination, Minimizing Leakers; Good Transparency And Gloss.
Types and applications of thermoforming films
There are different types of thermoforming films manufactured such as
1. Thermoforming Flexible packaging films
2. PA/EVOH based 7,9,11 layer thermoforming films
3. Rigid thermoforming films, etc
The type of design of thermoforming film is decided based on the industrial requirement in terms of variations in widths, thickness, base material, and the sealing layer. Its applications include higher level of automation and also individual packaging design which are flexible options for food and hard items packaging option. The high barrier and puncture resistant quality helps the packaging reliable and useful.
Product Information:
Unit | HKCE9860 | HKCE9880 | HKCE98100 | HKCE98125 | ||
Thickness | um | 60 | 80 | 100 | 125 | |
Tensile | MD | Mpa | ≥ 34 | ≥ 36 | ≥ 38 | ≥ 43 |
Strength | TD | Mpa | ≥ 32 | ≥ 35 | ≥ 37 | ≥ 41 |
Elongation | MD | % | ≥ 420 | ≥ 460 | ≥ 460 | ≥ 480 |
TD | % | ≥ 435 | ≥ 470 | ≥ 470 | ≥ 530 | |
Transparence | % | ≥ 92 | ≥ 92 | ≥ 92 | ≥ 90 | |
Haze | % | ≤ 14 | ≤ 14 | ≤ 15 | ≤ 18 | |
Coefficient of Friction | 0.1~0.25 | |||||
WTR | g/ m2.24h. atm | ≤ 8 | ≤ 6 | ≤ 6 | ≤ 5 | |
(38° C, 90%RH) | ||||||
OTR | cc/ m2.24h. atm | ≤ 5 | ≤ 5 | ≤ 3 | ≤ 1 | |
(23° C0%RH) | ||||||
Heat Seat Strength | N/15mm | ≥ 27 | ≥ 29 | ≥ 33 | ≥ 38 |
Our advantage:
1. Excellent deep draw thermoforming over a wide range of draw ratios
2. Excellent gas,water and vapour barrier property
3. Great forming uniformity,high-efficiency water blocking,keep food fresh for a long time
4. Good puncture resistance and heat-sealing performance
5. High transparency and great gloss, improve the brightness and saturation of the product packaging.
Storage:
Please store it in clean, well-ventilated and dry environments at a temperature between 5ºC and 35ºC; Keep it away from heat, corrosive chemicals or any other harmful substances.
Material: High-quality resin, strong toughness, not easy to damage.
Feature: No bubble, the thermoforming effect is excellent.
Notice: A variety of models, according to the needs of choice. Tear off the white protective paper before use.
Usage: Highly versatile,suitable for multiple applications,such as frozen food, organic food, soup, pre-cooked meals packaging, etc.
Samples can be provided for testing, but the MOQ for formal orders is 1-2 tons.
If you are interested in it, please feel free to contact me, tell me your needs, I will send you more product details, and I can quote you a good price. My contact details are below, and I would be gald to hear from you.
Contact Person:En
E-mail: forla_li@hbhuakun.com
Wechat/Whatsapp/Tel:+86 13450871796
