Thermoforming Film Supplier - Hawking Custom Transparent Film Packaging

Place of Origin China
Brand Name Hawking
Certification ISO 9001
Model Number HK-THF0032
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details 18 Per Pallet
Delivery Time 4 Weeks
Payment Terms T/T, L/C
Supply Ability 25 Tons Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PA Length 300 M
Width 600 Mm Grade Food Grade
Application Used In Various Packaging Color Transparent
Type Thermoforming Film Roll Usage For Food Packaging Bag Making Film
High Light

Custom Transparent Thermoforming Film

,

300M Length Thermoforming Film

,

Puncture Resistant Thermoforming Film

Leave a Message
Product Description

Thermoforming Film Supplier - Hawking Custom Transparent Film Packaging





Hawking is a first-class developer of new materials and a professional supplier of packaging materials.
The annual output of the company can reach 10,000 tons, and the thickness of the film can be 20um~300um. The company has introduced advanced equipment from Germany, W&H 11-layer co-extruded casting production line, 7-layer co-extrusion film blowing production line and 9-layer blowing film line. The co-extrusion process will co-extrude plastic particles with different characteristics through the equipment. Production of high barrier film, thermoforming film, Lidding film, vacuum packaging film/bag, multi-layer co-extrusion cushion packaging film and other functional films, the film has puncture resistance, flexibility, high barrier, high transparency, high temperature cooking, refrigeration and other superior performance, can meet the functional packaging needs in various fields. The company has a well-equipped laboratory, equipped with oxygen permeability, layer thickness, tension, friction coefficient, infrared microscope inspection instruments, to ensure that we can produce high-quality film, the implementation of brand strategy, strict process control. Product application: meat products, leisure food, cream products, medicine, electronic products, etc., to provide customers with better packaging materials.





What is Thermoforming Film?

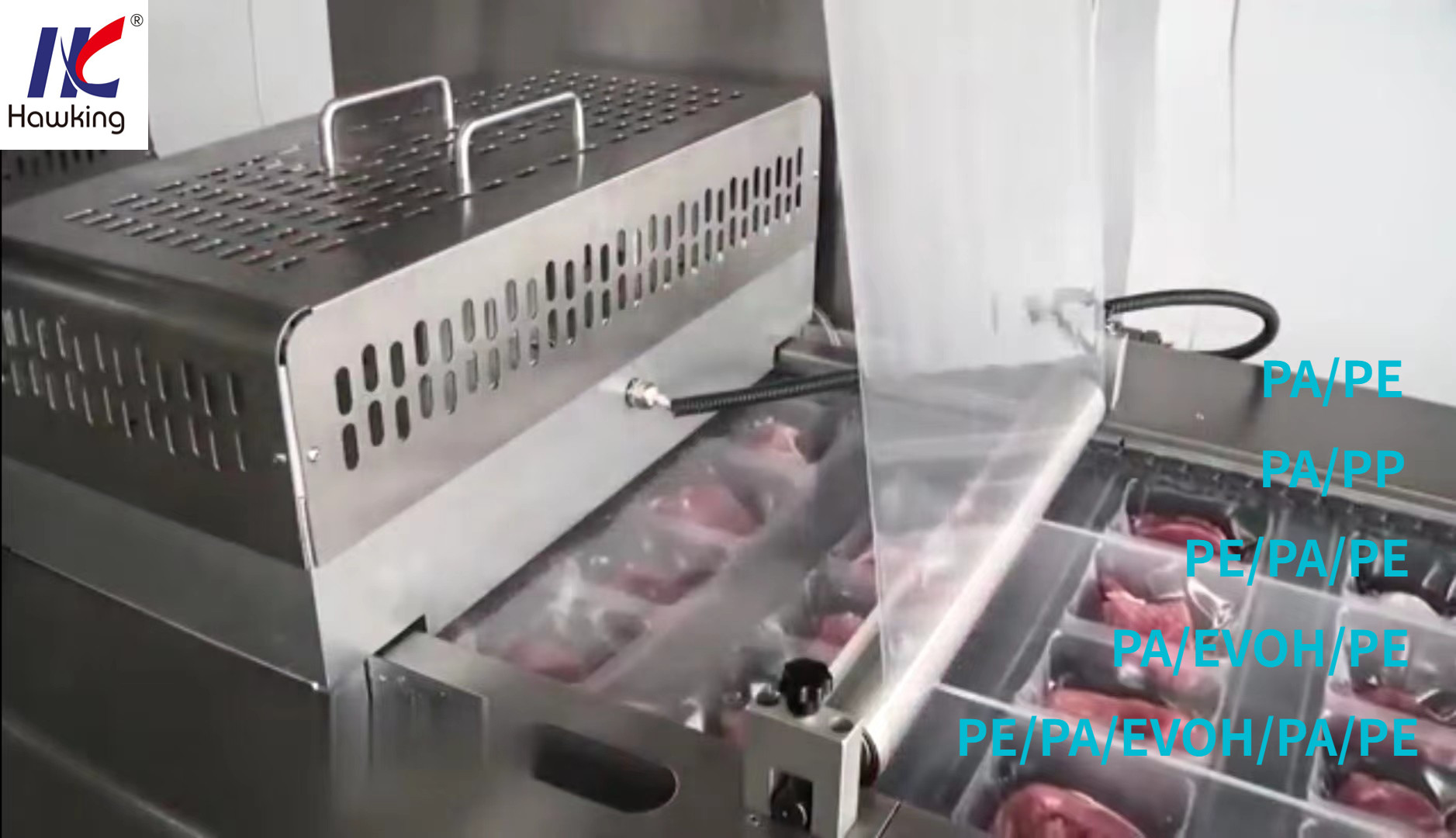

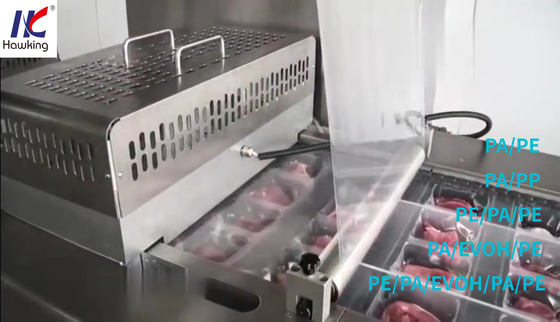

Also Called Forming Film And Non-Forming Film.Used On High Speed Ffs Thermoforming Film Machine,After Forming Bottom Web To Make A Chamber For Food,Then Vacuum And Seal Top Web; Normally Same Materials For Top Web And Bottom Web,To Achieve Same Barrier Property; Suitable For Both 85℃ Pasteurization And 121℃High Temperature Stream Steralization. Excellent Sealing Strength Through Contamination, Minimizing Leakers; Good Transparency And Gloss.





Industrial usage of thermo films


Below are some of the important industrial usages of thermoforming films

1. Thermoform in food packaging– The puncture resistant and meagre leakage feature finds good place in food packaging industry. In addition, at freezing temperature thermoform films retain strength and hence they are found to be one of the best packaging films for refrigerating food items like red meat, cheese, etc.

2. Thermoforming packaging for Medical industry– its strong mechanical properties and moisture barrier property finds its best usage for packaging sterile medical products such as medicines and medical equipments.

3. Thermoforming for other packaging purpose– Products made with thermoforming concept such as thermoforming films, thermoforming plastic sheets, and thermoformed blisters are found to be very useful in packaging different products such as cosmetics, food items, machines, medicines, etc. In addition, readymade packaging boxes are also available to make the packing very easy.





Product Information:

    Unit HKCE9860 HKCE9880 HKCE98100 HKCE98125
Thickness   um 60 80 100 125
Tensile MD Mpa ≥ 34 ≥ 36 ≥ 38 ≥ 43
Strength TD Mpa ≥ 32 ≥ 35 ≥ 37 ≥ 41
Elongation MD % ≥ 420 ≥ 460 ≥ 460 ≥ 480
  TD % ≥ 435 ≥ 470 ≥ 470 ≥ 530
Transparence   % ≥ 92 ≥ 92 ≥ 92 ≥ 90
Haze   % ≤ 14 ≤ 14 ≤ 15 ≤ 18
Coefficient of Friction     0.1~0.25
WTR   g/ m2.24h. atm ≤ 8 ≤ 6 ≤ 6 ≤ 5
(38° C, 90%RH)
OTR   cc/ m2.24h. atm ≤ 5 ≤ 5 ≤ 3 ≤ 1
(23° C0%RH)
Heat Seat Strength   N/15mm ≥ 27 ≥ 29 ≥ 33 ≥ 38





The Benefits of Thermoforming



There are some advantages traditionally associated with thermoforming



Low cost: Plastic sheets are an affordable raw material and the high-volumes facilitated by the thermoforming process generate additional economies of scale on large production runs.



Versatility: Thermoforming is a flexible process than can be used to make a variety of plastic goods of varying complexity.



Fast turnaround. As a high-volume plastic molding process, thermoforming offers fast lead times for large volumes of plastic products.



Low waste. Excess material can be collected, reground, and formed into plastic sheets for additional thermoforming activities.





Storage:



Please store it in clean, well-ventilated and dry environments at a temperature between 5ºC and 35ºC; Keep it away from heat, corrosive chemicals or any other harmful substances.





Material: High-quality resin, strong toughness, not easy to damage.


Feature: No bubble, the thermoforming effect is excellent.


Notice: A variety of models, according to the needs of choice. Tear off the white protective paper before use.





Usage: Highly versatile,suitable for multiple applications,such as frozen food, organic food, soup, pre-cooked meals packaging, etc.

Samples can be provided for testing, but the MOQ for formal orders is 1-2 tons.

If you are interested in it, please feel free to contact me, tell me your needs, I will send you more product details, and I can quote you a good price. My contact details are below, and I would be gald to hear from you.
