PA / EVOH / PE Multi Layer Co - Extrusion High Barrier Film For Food Packaging

Place of Origin Hubei Province,China
Brand Name Kawking Packaging
Certification BRC,SGS,ISO
Model Number HK-F043
Minimum Order Quantity 1000KG
Price Negotiable
Packaging Details Pallet or Carton
Delivery Time 4-5 Weeks
Payment Terms L/C, T/T
Supply Ability 500 Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material PA/EVOH/PE Forming Thermoforming Film Thickness OEM(40~350um)
Transparency High Transparent Processing Type Multiple Co-extrusion
Width OEM Type Food Grade Material
Tempeture Frozen To -18ºC,high Tempeturer To 100℃ Certificates SGS, ISO9001, ISO14001, QS,BPA Free
High Light

Co Extrusion High Barrier Film


Multi Layer High Barrier Film


High Barrier Film Food Packaging

Leave a Message
Product Description


PA/EVOH/PE Multi Layer Co-Extrusion High Barrier Film for Food Packaging


Product Information Nylon/EVOH/PE thermoforming film:

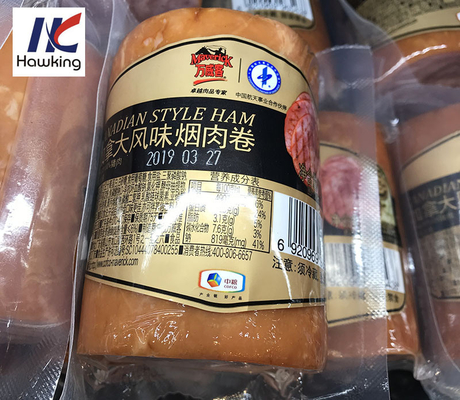

Application Sausages,Cereal,Fish,Seafood, Meat, Poultry and medical packaging
Product Line W&H 11 Layer Co-extruded Casting Production Line
All materails and equipments are exported
Structure PA/EVOH/PE or Customized
Length Customized
Width ≤2700mm
Thickness 30-350micron
Temperature Suitable for Deep Freezing Down to -18°C
Suitable for high temperature cooking up to 100 ° C(Microwave oven)
Roll Dia. 3"--6"
OEM Available
Color High Transparent or Customized
Print YES
Sample offer the samples freely of stock bags but couerier fees is paid by client
Delivery day 15-20 days after finished the prepayment
Payment T/T with 30% deposit and balance paid before shipment
Business Type Manufacturer,Found in 2009

Product FeaturesNylon/EVOH/PE thermoforming film:

1, Performance: CO extruded film, middle barrier effect of oxygen, water, carbon dioxide, odor;
2, Powerful: oil resistant, moisture resistant, resistant to 100 ° C high temperature cooking, low temperature freezing, quality preservation, smell. Can be used for vacuum packaging, aseptic packaging, inflatable packaging;
4, Flexible structural design: different structural design can be used to meet the quality requirements of different products;
5, High strength: high tensile strength, good flexibility, good sealing;


Advantage Nylon/EVOH/PE thermoforming film:

1. Wide range of oxygen transmission rates- for an extended packed product shelf life.

2. High barrier properties against gas and moisture.

3. High resistance to oil and solvents and excellent aroma retention power.

4. Low leakage, high filling rate providing more profit to users.

5. Excellent Mechanical properties at low thickness, great cost efficient.

6. Excellent hot tack, sealing property & higher temperature resistance vertical form fill seal films

7. Higher temperature resistance.

If you are interested in it, please feel free to contact me, tell me your needs, I will send you more product details, and I can quote you a good price.

Samples can be provided for testing, but the MOQ for orders is 1 ton.


Data sheet:

Coex Casting Film
Thickness um 80 175
MD/TD Mpa > 25 > 25
Elongation MD/TD % > 400 > 450
Transparence % ≥ 93 ≥ 92
Haze % < 4 < 10
Coefficient Of Friction IN/IN 0 .35 0.35
(38° C, 100%RH)
g/sq.m/day < 8 < 3
(23 ° C 100%RH)
cc/sq.m/day < 40 < 1
Sealing Strength N/15mm > 25 > 50

--Multilayer film which are producedby combining different polymer layers , offer special attributes as barrier properties against oxygen,water vapour and aromas.
--Easy processing for automatic thermoforming machines.
--Absolutely no inherent curling of web.
--High transparency and high gloss.

PA / EVOH / PE Multi Layer Co - Extrusion High Barrier Film For Food Packaging 0
PA / EVOH / PE Multi Layer Co - Extrusion High Barrier Film For Food Packaging 1PA / EVOH / PE Multi Layer Co - Extrusion High Barrier Film For Food Packaging 2
PA / EVOH / PE Multi Layer Co - Extrusion High Barrier Film For Food Packaging 3PA / EVOH / PE Multi Layer Co - Extrusion High Barrier Film For Food Packaging 4
Factory information
Company name Hubei Hawking packaging material Co., Ltd
Head office DaYe district,HuangShi ctity,HuBei province,China
Branch office Bai Yun district,GuangZhou city.GuangDong province,China
Fty area 67,000 square metter with US$3.5 million and million investment
Factory scale 100-200 persons ,automatic production
Main Production Line Advanced Germany 7&11 layer co-extrsion air blow and casting equipments
Main product PA,PE,EVOH,PP Film with vacuum pouches
Main market North and South American ,Europe ,Australia and Asia
Certification ISO9001,ISO14001,SGS ,BPA Free,BRC,MSDS certificated
Production capacity 6000 Ton per Year
MOQ 1 Ton
Payment item 30% TT advance ,70% before shipment
Export port ShangHai Port


Kindly Reminder:
Please advise the barrier material, thickness, size, style and quantity you prefer and other requirements, we will glad to help you with your choosing the right products and give you the best price.Welcome to send an inquiry to us!
