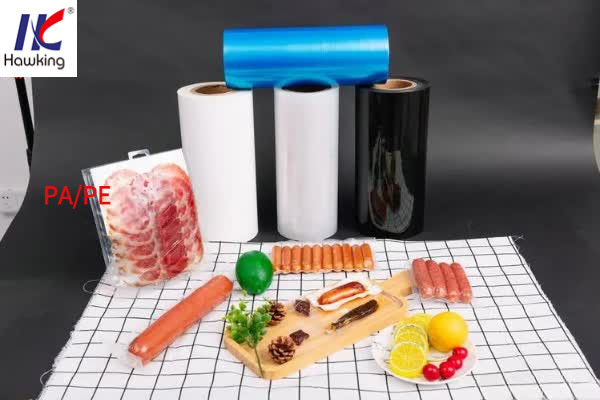

Thermoforming Polymer Film Pa Pe Evoh Pp High Barrier Food Packed Film
| Place of Origin | China |
|---|---|
| Brand Name | Hawking |
| Certification | ISO 9001 |
| Model Number | HK-THF0032 |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiable |
| Packaging Details | 18 Per Pallet |
| Delivery Time | 4 Weeks |
| Payment Terms | T/T, L/C |
| Supply Ability | 25 Tons Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Polymer | Length | Customized |
|---|---|---|---|
| Width | ≤2700 | Barrier | High Barrier |
| Application | For Food Packed | Color | Transparent |
| Type | Barrier Pouched / Bag | Usage | Of Various Types Packaging |
| High Light | Thermoforming Polymer Film,High Barrier Thermoforming Polymer Film |
||
Product Description
Thermoforming Polymer Film Pa Pe Evoh Pp High Barrier Food Packed Film
Hawking is a first-class developer of new materials and a professional supplier of packaging materials.
The annual output of the company can reach 10,000 tons, and the thickness of the film can be 20um~300um. The company has introduced advanced equipment from Germany, W&H 11-layer co-extruded casting production line, 7-layer co-extrusion film blowing production line and 9-layer blowing film line. The co-extrusion process will co-extrude plastic particles with different characteristics through the equipment. Production of high barrier film, thermoforming film, Lidding film, vacuum packaging film/bag, multi-layer co-extrusion cushion packaging film and other functional films, the film has puncture resistance, flexibility, high barrier, high transparency, high temperature cooking, refrigeration and other superior performance, can meet the functional packaging needs in various fields. The company has a well-equipped laboratory, equipped with oxygen permeability, layer thickness, tension, friction coefficient, infrared microscope inspection instruments, to ensure that we can produce high-quality film, the implementation of brand strategy, strict process control. Product application: meat products, leisure food, cream products, medicine, electronic products, etc., to provide customers with better packaging materials.
Thermoforming Film
Also Called Forming Film And Non-Forming Film.Used On High Speed Ffs Thermoforming Film Machine,After Forming Bottom Web To Make A Chamber For Food,Then Vacuum And Seal Top Web; Normally Same Materials For Top Web And Bottom Web,To Achieve Same Barrier Property; Suitable For Both 85℃ Pasteurization And 121℃High Temperature Stream Steralization. Excellent Sealing Strength Through Contamination, Minimizing Leakers; Good Transparency And Gloss.
Industrial usage of thermo films
Below are some of the important industrial usages of thermoforming films
1. Thermoform in food packaging– The puncture resistant and meagre leakage feature finds good place in food packaging industry. In addition, at freezing temperature thermoform films retain strength and hence they are found to be one of the best packaging films for refrigerating food items like red meat, cheese, etc.
2. Thermoforming packaging for Medical industry– its strong mechanical properties and moisture barrier property finds its best usage for packaging sterile medical products such as medicines and medical equipments.
3. Thermoforming for other packaging purpose– Products made with thermoforming concept such as thermoforming films, thermoforming plastic sheets, and thermoformed blisters are found to be very useful in packaging different products such as cosmetics, food items, machines, medicines, etc. In addition, readymade packaging boxes are also available to make the packing very easy.
Product Information:
| Unit | HKCE9860 | HKCE9880 | HKCE98100 | HKCE98125 | ||
| Thickness | um | 60 | 80 | 100 | 125 | |
| Tensile | MD | Mpa | ≥ 34 | ≥ 36 | ≥ 38 | ≥ 43 |
| Strength | TD | Mpa | ≥ 32 | ≥ 35 | ≥ 37 | ≥ 41 |
| Elongation | MD | % | ≥ 420 | ≥ 460 | ≥ 460 | ≥ 480 |
| TD | % | ≥ 435 | ≥ 470 | ≥ 470 | ≥ 530 | |
| Transparence | % | ≥ 92 | ≥ 92 | ≥ 92 | ≥ 90 | |
| Haze | % | ≤ 14 | ≤ 14 | ≤ 15 | ≤ 18 | |
| Coefficient of Friction | 0.1~0.25 | |||||
| WTR | g/ m2.24h. atm | ≤ 8 | ≤ 6 | ≤ 6 | ≤ 5 | |
| (38° C, 90%RH) | ||||||
| OTR | cc/ m2.24h. atm | ≤ 5 | ≤ 5 | ≤ 3 | ≤ 1 | |
| (23° C0%RH) | ||||||
| Heat Seat Strength | N/15mm | ≥ 27 | ≥ 29 | ≥ 33 | ≥ 38 |
Our advantage:
1. Excellent deep draw thermoforming over a wide range of draw ratios
2. Excellent gas,water and vapour barrier property
3. Great forming uniformity,high-efficiency water blocking,keep food fresh for a long time
4. Good puncture resistance and heat-sealing performance
5. High transparency and great gloss, improve the brightness and saturation of the product packaging.
Storage:
Please store it in clean, well-ventilated and dry environments at a temperature between 5ºC and 35ºC; Keep it away from heat, corrosive chemicals or any other harmful substances.
Material: High-quality resin, strong toughness, not easy to damage.
Feature: No bubble, the thermoforming effect is excellent.
Notice: A variety of models, according to the needs of choice. Tear off the white protective paper before use.
Usage: Highly versatile,suitable for multiple applications,such as frozen food, organic food, soup, pre-cooked meals packaging, etc.
Samples can be provided for testing, but the MOQ for formal orders is 1-2 tons.
If you are interested in it, please feel free to contact me, tell me your needs, I will send you more product details, and I can quote you a good price. My contact details are below, and I would be gald to hear from you.
Contact Person:En
E-mail: forla_li@hbhuakun.com
Wechat/Whatsapp/Tel:+86 13450871796
Material: Polymer
Barrier: High Barrier
Usage: For Food Packed
Type: Thermoforming Film
